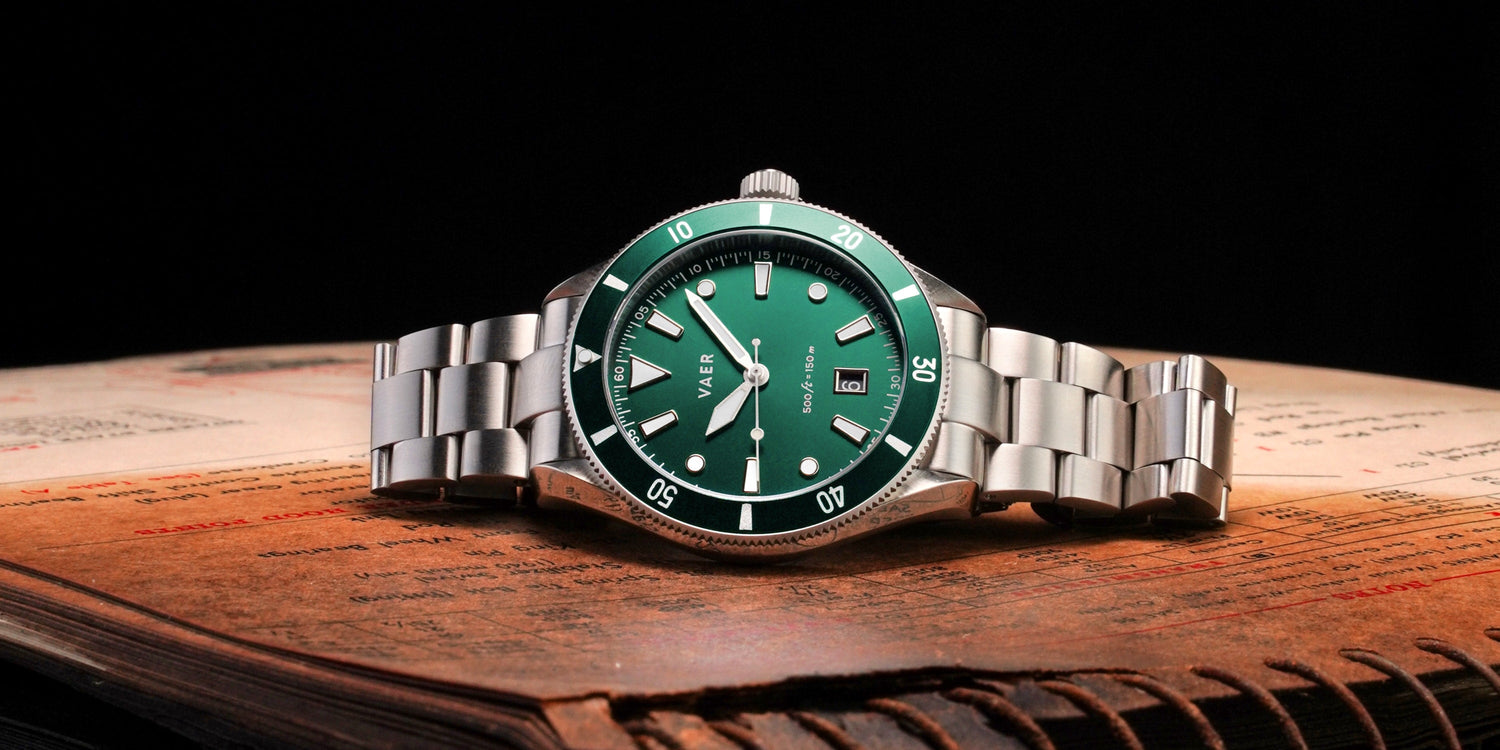

The Vaer DS2 is a purpose-built quartz dive watch designed for reliability, legibility, and real-world water use. While positioned as Vaer’s most accessible dive watch, it is built to the same durability standards as every Vaer tool watch and is engineered for long-term ownership rather than disposable use.
This quick-start guide covers essential operation and handling of all DS2 models. For deeper technical detail on quartz movements, battery service, and long-term care, refer to Vaer’s full Quartz Watch Care & Handling Guide.
1. Purpose & Design Overview (DS2 Collection)
The DS2 is a traditional dive watch in the classic sense: a highly legible dial, strong lume performance, a rotating timing bezel, and a case engineered to withstand prolonged water exposure.
Dive watches originated as underwater timing instruments, allowing divers to track elapsed time using a simple, fail-safe mechanical interface. The DS2 maintains that functional lineage while using modern quartz regulation for accuracy, shock resistance, and ease of ownership.
Case sizing within the DS2 collection:
- 36 mm — compact, vintage-inspired diver proportions
- 39 mm — balanced, everyday dive-watch sizing
- 42 mm — modern, high-legibility sport diver
All sizes share the same construction standards, movement technology, bezel design, and operating principles.
2. Water Resistance & Crown Operation
All DS2 Quartz Divers are rated to 15 ATM / 150 meters of water resistance.
In real-world use, this rating is appropriate for:
- Swimming
- Surfing
- Snorkeling
- Free diving
- Recreational scuba diving within no-decompression limits
While 150 meters exceeds typical recreational depth, water resistance is not solely about depth. Motion, temperature changes, and repeated crown use place greater stress on seals than static pressure alone.
All Vaer watches use a screw-down crown, which is essential to maintaining water resistance and required for warranty coverage.
To secure the crown:
- Press the crown gently toward the case
- Rotate clockwise until snug
- Do not overtighten
Important:
Never operate the crown or expose the watch to water unless the crown is fully screwed down. Flooding caused by an unsecured crown is considered misuse and is not covered under warranty.
After saltwater use, rinse the case, bezel, and strap with fresh water to remove salt buildup.
3. Setting the Time and Date (Quartz Movement)
DS2 watches are powered by Japanese quartz movements selected for durability, accuracy, and long-term serviceability.
To set the watch:
- Unscrew the crown by rotating it counterclockwise until it releases (position 1)
- Pull the crown outward
Position 2 – Date Setting (if applicable)
- Pull the crown to the first click
- Rotate to advance the date
Position 3 – Time Setting
- Pull the crown to the second click
- Rotate to set the time
Once set:
- Push the crown fully inward
- Screw it clockwise until snug
Important:
Only adjust the date when the time is between approximately 2:00 AM and 10:00 PM. Adjusting the date near midnight can damage the date-change mechanism.
4. Dive Bezel Operation & Timing Use
The DS2 features a 60-minute unidirectional rotating dive bezel with an anodized aluminum insert.
Why unidirectional?
Dive bezels rotate only counterclockwise to prevent accidental extension of elapsed time. If the bezel is bumped underwater, it can only shorten the indicated dive time—never lengthen it—adding a margin of safety.
To use the bezel:
- Before entering the water, rotate the bezel so the zero marker aligns with the minute hand
- As time passes, read elapsed minutes directly against the bezel scale
- The bezel tracks up to 60 minutes of elapsed time
The bezel is designed for timing:
- Dives
- Swim intervals
- Decompression stops
- Any short-duration activity requiring simple elapsed timing
The bezel does not affect the watch’s timekeeping and can be used independently at any time.
5. Sapphire Crystal and Case Durability
DS2 watches use synthetic sapphire crystal for maximum scratch resistance. Sapphire measures 9 on the Mohs hardness scale, second only to diamond among materials used in watchmaking. This provides strong resistance to abrasion from sand, salt, and daily wear.
Sapphire is extremely hard but rigid. Sharp, concentrated impacts against stone, concrete, or metal can cause cracking or shattering.
The DS2 case is constructed from stainless steel with brushed or coated finishes. Light surface wear—particularly on brushed surfaces—is expected over time and does not affect structural integrity or water resistance.
Avoid prolonged exposure to:
- Harsh chemicals or solvents
- Abrasive cleaning agents
- Extreme heat (such as leaving the watch in a closed vehicle)
6. Straps, Bracelets, and Strap Changes
Most DS2 watches ship with quick-release straps, allowing tool-free changes.
To remove a strap:
- Pull the small metal knob on the underside of the strap to disengage the spring bar
To install:
- Seat one end of the bar into the lug
- Pull the knob inward
- Align the opposite end and release
Ensure the strap with the buckle is installed on the 12 o’clock side of the case.
DS2 watches are also compatible with:
- Rubber dive straps
- Stainless steel bracelets
- Single-pass (NATO-style) straps
Strap care:
- Leather straps should not be submerged
- Rubber and nylon straps may be rinsed with mild soap and water
- Bracelets benefit from periodic cleaning with warm water and a soft brush
Always confirm the crown is fully secured before cleaning or rinsing the watch.
7. Shock, Magnetism, and Temperature
Quartz movements are well suited to active use and water sports.
- Avoid hard drops onto stone or concrete
- Avoid repeated heavy impacts
- Avoid prolonged close exposure to strong magnetic sources
Quartz regulation is largely immune to everyday magnetism compared to mechanical watches, though sustained close contact with strong magnetic fields should still be avoided.
Extreme temperatures can shorten battery life and accelerate gasket aging.
8. Battery Life, Replacement, and Serviceability
DS2 Quartz Divers use silver-oxide batteries with an expected lifespan of approximately 3–5 years, depending on the specific movement and usage.
As the battery nears depletion, you may observe:
- Irregular seconds-hand movement
- Intermittent stopping
- Complete stoppage
These behaviors indicate battery depletion, not movement failure.
All DS2 watches use a screw-down, gasket-sealed caseback. While battery replacement is technically possible for owners, professional service is recommended to ensure:
- Proper gasket reseating
- Preservation of water resistance
- Optional pressure testing after service
Vaer offers in-house service and supports long-term ownership through its Pre-Owned Buy-Back Program.
9. Long-Term Ownership Philosophy
The DS2 is designed as a true tool diver: simple, robust, and serviceable.
Quartz dive watches do not require routine mechanical servicing. With periodic battery replacement, gasket inspection, and sensible use, a DS2 can provide multi-decade service life.
While positioned as Vaer’s most accessible dive watch, the DS2 is built to the same durability standards as every Vaer timepiece. It is intended to be worn, maintained, resealed, and kept in use—not replaced when conditions get rough.
For deeper technical detail on quartz movements, pressure testing, warranty coverage, or service options, refer to Vaer’s full Quartz Watch Care & Handling Guide or contact our support team directly.
